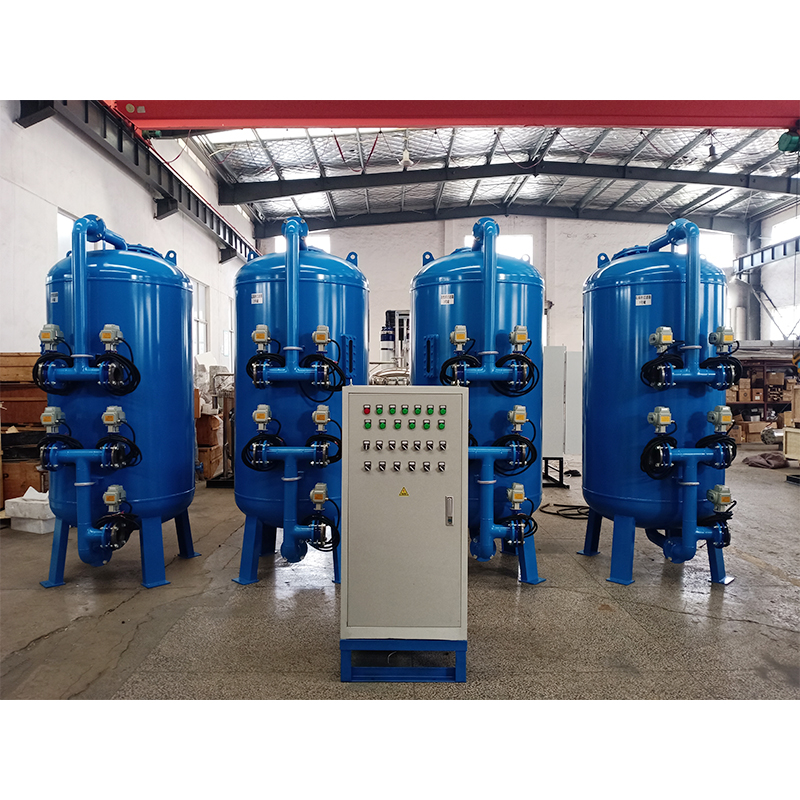

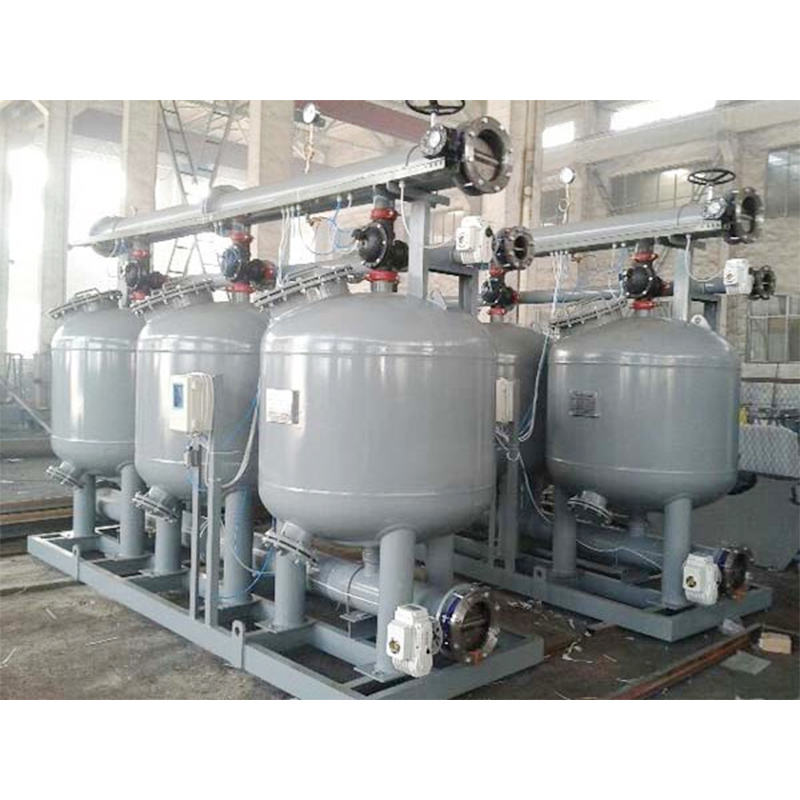

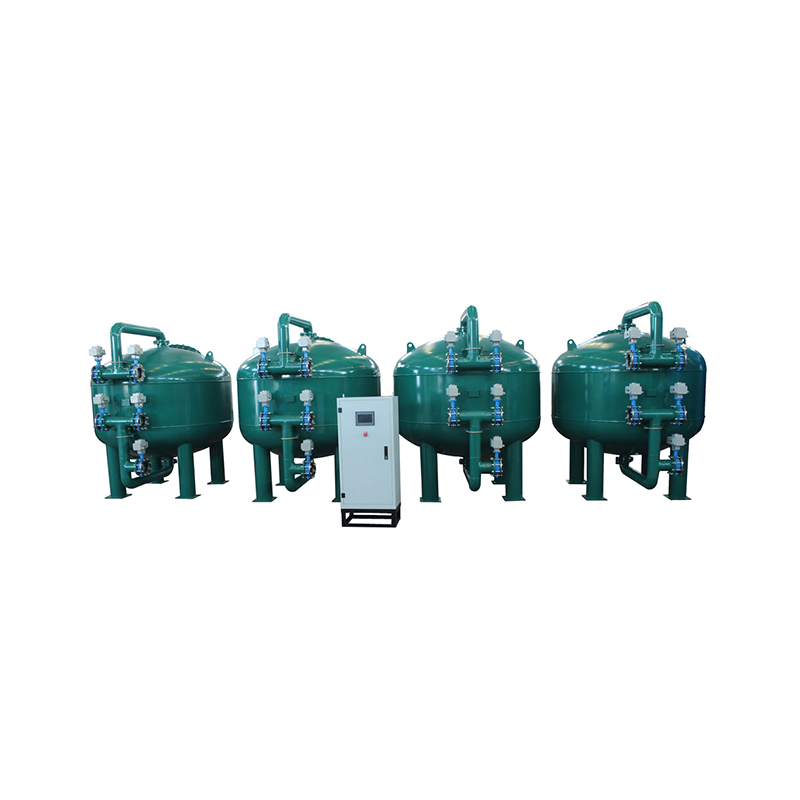

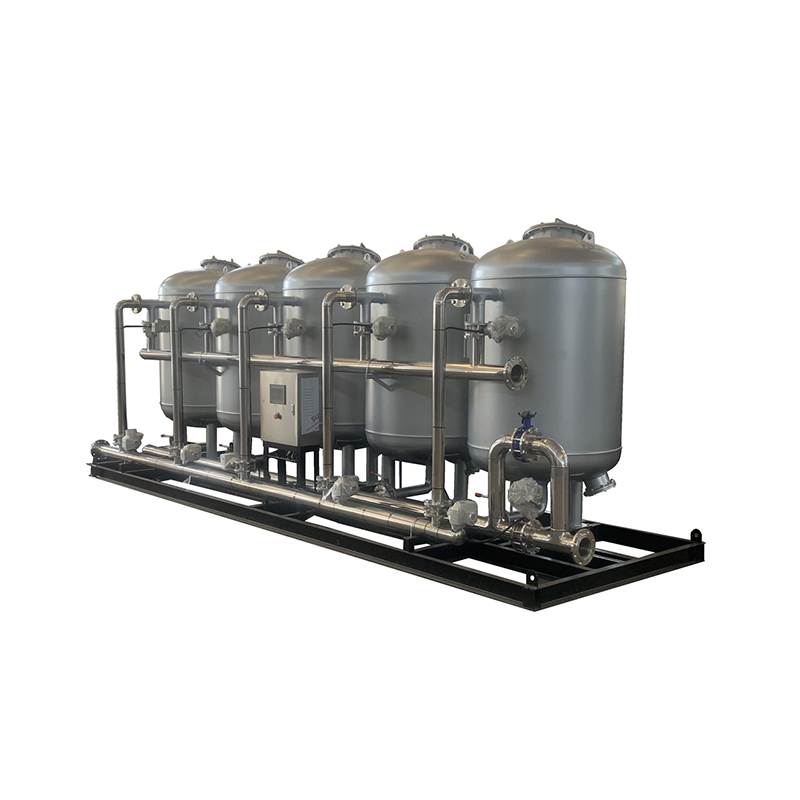

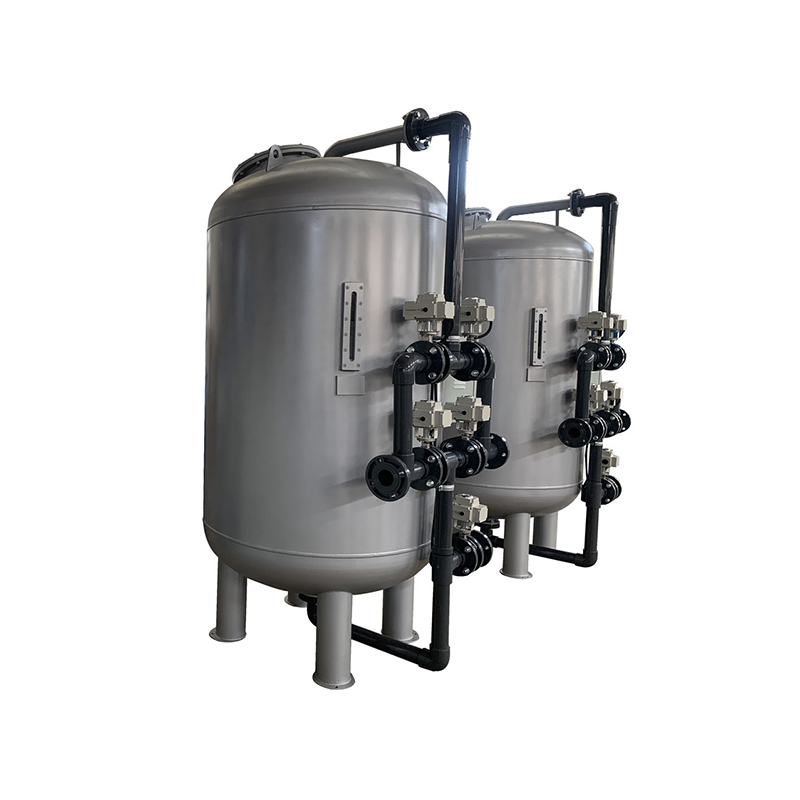

Multi-Media Filter

YL-SF-2800
Multi-media filter is a process that uses 1 or several kinds of filter media to pass water with high turbidity through granular or non-granular materials with a certain thickness under a certain pressure, thus effectively removing suspended impurities and clarifying water. Commonly used filter materials include quartz sand, anthracite, manganese sand, etc. They are mainly used for water treatment to remove turbidity, soften water, pre-treatment of pure water, etc. The effluent turbidity can be recognized below 3 degrees. Multi-media filter is a commonly used pretreatment device for deep purification of water quality, which can be filled with different filter materials according to process requirements.
Multi-media filter material can be made of glass fiber reinforced plastic, carbon steel anti-corrosion or rubber lining, all stainless steel. The operation mode has two forms of automatic and manual, which is easy to operate and easy to maintain. It is widely used in the pretreatment device of water treatment process in all walks of life.

Consult

Features
Technical Indicators
Overall Dimension

Technical parameters
Working temperature: 5-40℃
Filter rate：8-12m/h
Tank material: Q235/304/316L
Working pressure: 0.25-1.6Mpa
Specification
Model
Flow rate
（T/h）
Tank dia.
（mm）
Total height
（mm）
Inlet & outlet dia.
(mm)
Filtration area
（m2）
YLD-MF-500
2
500
2350
DN32
0.19
YLD-MF-600
3
600
2380
DN32
0.28
YLD-MF-700
4
700
2400
DN40
0.38
YLD-MF-800
5
800
2400
DN40
0.50
YLD-MF-900
6
900
2500
DN50
0.63
YLD-MF-1000
8
1000
2600
DN50
0.79
YLD-MF-1200
11
1200
2700
DN65
1.13
YLD-MF-1400
15
1400
2800
DN65
1.54
YLD-MF-1500
18
1500
2850
DN65
1.76
YLD-MF-1600
20
1600
2900
DN80
2.01
YLD-MF-1800
25
1800
3000
DN80
2.54
YLD-MF-2000
30
2000
3100
DN100
3.14
YLD-MF-2200
38
2200
3180
DN100
3.80
YLD-MF-2400
45
2400
3330
DN100
4.52
YLD-MF-2500
50
2500
3380
DN100
4.90
YLD-MF-2600
55
2600
3430
DN125
5.30
YLD-MF-2800
60
2800
3530
DN125
6.15
YLD-MF-3000
70-80
3000
3630
DN125
7.00
YLD-MF-3200
80-100
3200
3730
DN150
8.03

Model	Flow rate （T/h）	Tank dia. （mm）	Total height （mm）	Inlet & outlet dia. (mm)	Filtration area （m2）
YLD-MF-500	2	500	2350	DN32	0.19
YLD-MF-600	3	600	2380	DN32	0.28
YLD-MF-700	4	700	2400	DN40	0.38
YLD-MF-800	5	800	2400	DN40	0.50
YLD-MF-900	6	900	2500	DN50	0.63
YLD-MF-1000	8	1000	2600	DN50	0.79
YLD-MF-1200	11	1200	2700	DN65	1.13
YLD-MF-1400	15	1400	2800	DN65	1.54
YLD-MF-1500	18	1500	2850	DN65	1.76
YLD-MF-1600	20	1600	2900	DN80	2.01
YLD-MF-1800	25	1800	3000	DN80	2.54
YLD-MF-2000	30	2000	3100	DN100	3.14
YLD-MF-2200	38	2200	3180	DN100	3.80
YLD-MF-2400	45	2400	3330	DN100	4.52
YLD-MF-2500	50	2500	3380	DN100	4.90
YLD-MF-2600	55	2600	3430	DN125	5.30
YLD-MF-2800	60	2800	3530	DN125	6.15
YLD-MF-3000	70-80	3000	3630	DN125	7.00
YLD-MF-3200	80-100	3200	3730	DN150	8.03
